Big Cell Half Cut BigCell Monoperc

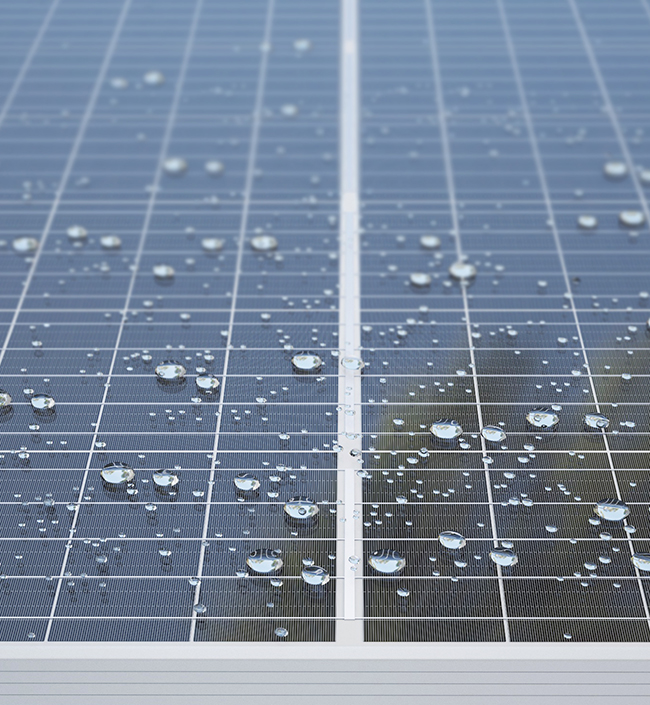

ULTRA CLEAR AR COATING & TEMPERED SOLAR GLASS
 High Transmittance
≥%0

Reduced Resistive losses When the cell is cut in half (158.75 x 78.375 mm), the amount of electrical current is halved which leads to lower resistive losses
  High Impact Resistance
Surpassed Solid Impact Test
(solid steel ball ɸ=50mm, 535g)
Performing huge resilience to hail or other object damage
 High Pressure Resistance
Maximum Static Loading
(5400 Pascal)
Performing great endurance under the heavy snow load
PERC CELL TECHNOLOGY
PASSIVATED EMITTER, REAR CONTACT
  High Efficiency
≥%0

PERC architecture enables to improve light capture near the rear surface and to optimize electrons capture which significantly improves the cell efficiency.
  5BB Front Electrode Design
Better Current Collection Ability
Outstanding Performance at Low Irradiance

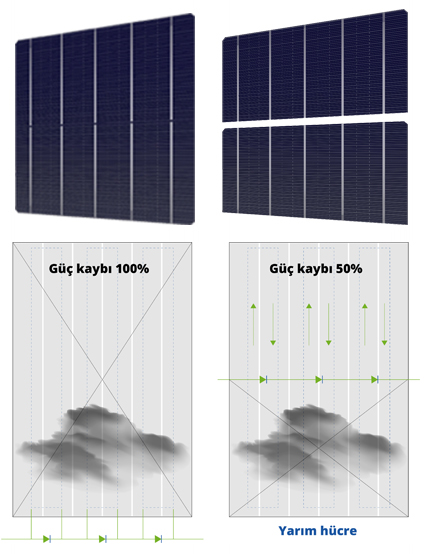

HALF-CUT CELL TECHNOLOGY
  Improved Panel Performance
+5 ~ 10 W
Reduced Resistive losses
When the cell is cut in half (158.75 x 78.375 mm), the amount of electrical current is halved which leads to lower resistive losses
  Lower Operation Temperature & Lower Hot-Spot Impact
Higher Reliability Of The Module
  Higher Shade Tolerance
Higher Performance In Partial Shadow Conditions

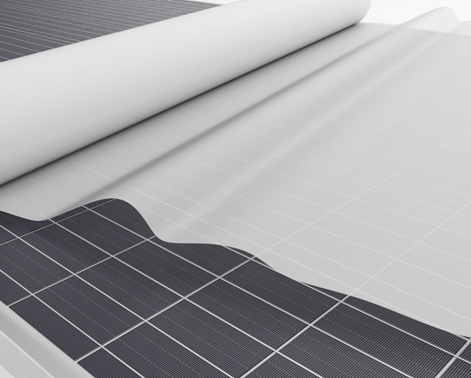

ENCAPSULANT MATERIAL: EVA
  High Transmittance
≥%0
  Excellent PID Resistance
Withstand 96h PID testing under high voltage
  Longer Durability
High Electrical & Moisture Insulation
Delamination and Yellowing

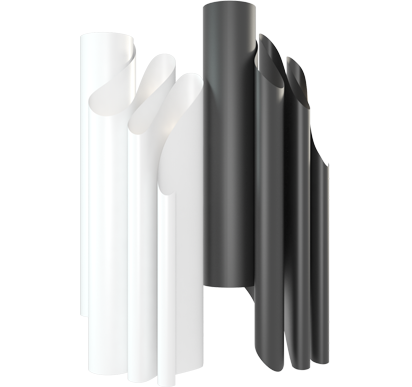

ENDURANCE BACK SHEET
Excellent Electrical Insulation
320 / 350 Micron Thickness
3 Multi-Layer Structure
Anti UV-Structure
High resistance to Ultraviole radiation with Double-sided fluorinated composite.
High Inner layer Reflectivity
≥%0

Increase light capture and module performance

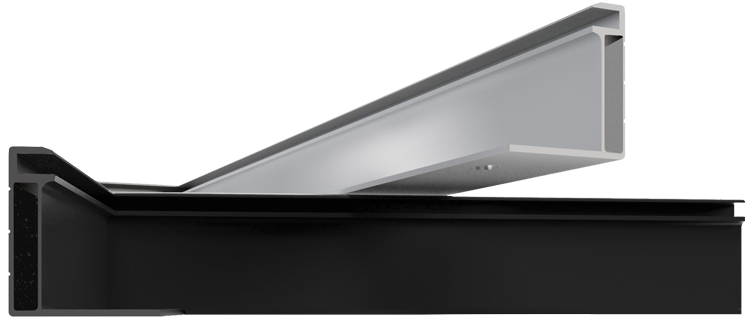

ANODIZED ALUMINUM SOLAR FRAME
High Tensile Strength
0N
Longer Durability with serrated-clip design
Thick Eloxal Surface Coating
0µ
Longer Durability With Tough & Corrosion-resistant Protective Layer
16 Drain Holes
Drain Away Water Effectively
User- Friendly

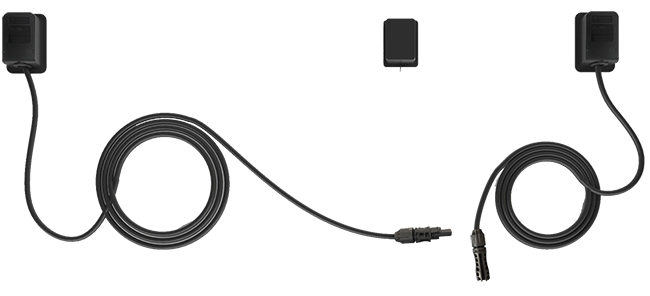

JUNCTION BOX & CONNECTOR


Highest Ingress Protection Rate
IP 68 rating ( Silicon potting)
Solar Cable
Cable Diameter 4mm²
Cable Length 1m or
can be Customized
Original Multi-Contact
